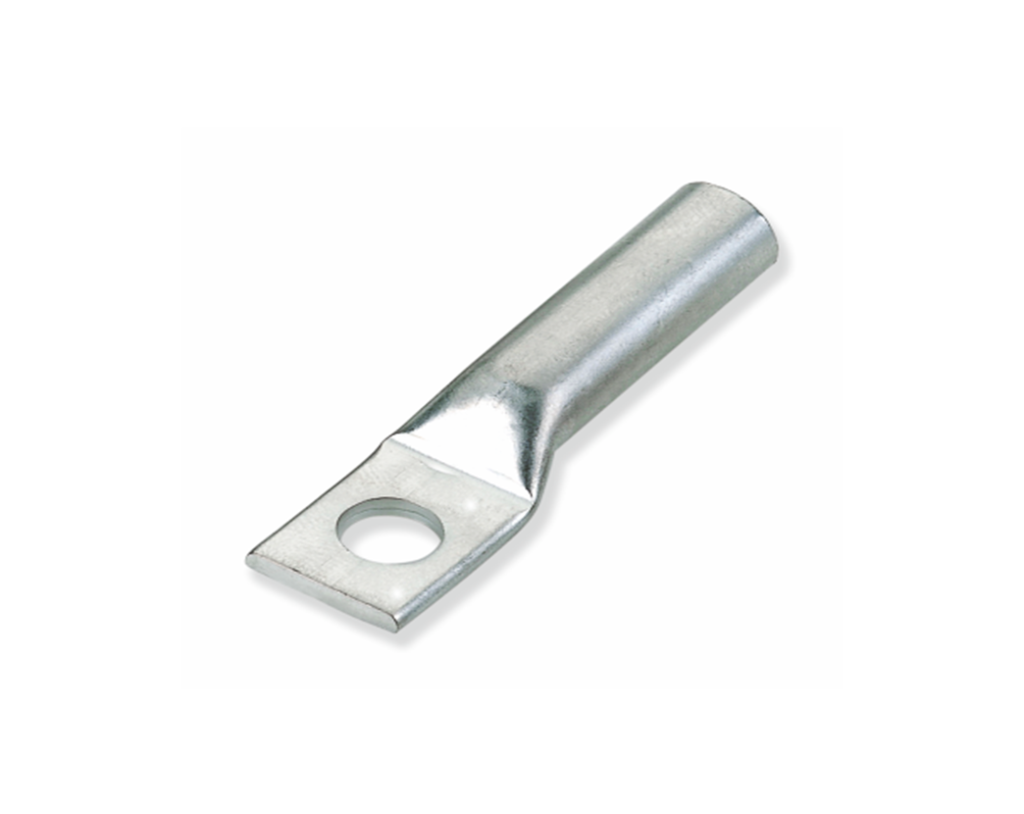

Copper compression lugs – Long barrel, One hole

Name: Copper compression lugs - Long barrel, One hole
SKU: 232
Availability: InStock

Category: Cable Terminal

Used for reliable electrical connections Rated from 60O volts up to 35,000 volts Temperature rating: 9OC High conductivity seamless copper

Description

Select	Qty	Wire Size	Bolt Size	Dimensions in Inches					Colour Code	Product Code
Select	Qty	Wire Size	Bolt Size	OD	A1	A	F	G	Colour Code	Product Code
		8	#10	0.281	0.440	1.820	1.260	0.630	Red	VS-8L2
		6	1/4″	0.297	0.710	2.090	1.260	0.630	Blue	VS-6L2
		4	1/4″	0.344	0.710	2.090	1.260	0.630	Gray	VS-4L2
		2	5/16″	0.422	0.830	2.620	1.610	0.750	Brown	VS-2L2
		1	1/4″	0.469	0.830	2.280	1.260	0.630	Green	VS-1L2
		1/0	5/16″	0.517	0.830	2.874	1.810	0.984	Pink	VS-1/0L2
		1/0	3/8″	0.517	0.830	2.830	1.810	1.000	Pink	VS-1/0-38L2
		2/0	3/8″	0.563	0.940	2.990	1.850	1.000	Black	VS-2/0L2
		2/0	1/2″	0.563	0.940	4.170	2.990	1.750	Black	VS-2/0-12L2
		3/0	1/2″	0.609	0.984	4.290	2.990	1.750	Orange	VS-3/0L2
		4/0	1/2″	0.688	1.142	4.290	3.031	1.750	Purple	VS4/0L2
		4/0	3/8″	0.688	1.142	4.449	3.031	1.752	Purple	VS-4/0-38L2
		250 MC	1/2″	0.750	1.060	4.410	2.990	1.750	Yellow	VS-250L2
		300 MC	1/2″	0.813	1.060	4.410	2.990	1.750	White	VS-300L2
		350 MC	1/2″	0.875	1.100	4.530	2.990	1.750	Red	VS-350L2
		400 MC	1/2″	0.937	1.180	4.690	2.990	1.750	Blue	VS-400L2
		500 MC	1/2″	1.063	1.380	4.880	2.990	1.750	Brown	VS-500L2
		600 MC	3/8″	1.188	1.500	4.960	2.990	1.750	Green	VS-600L2
		600 MC	1/2″	1.188	1.500	5.040	2.990	1.750	Green	VS-600-12L2

Standards:
UL 486A-4868
