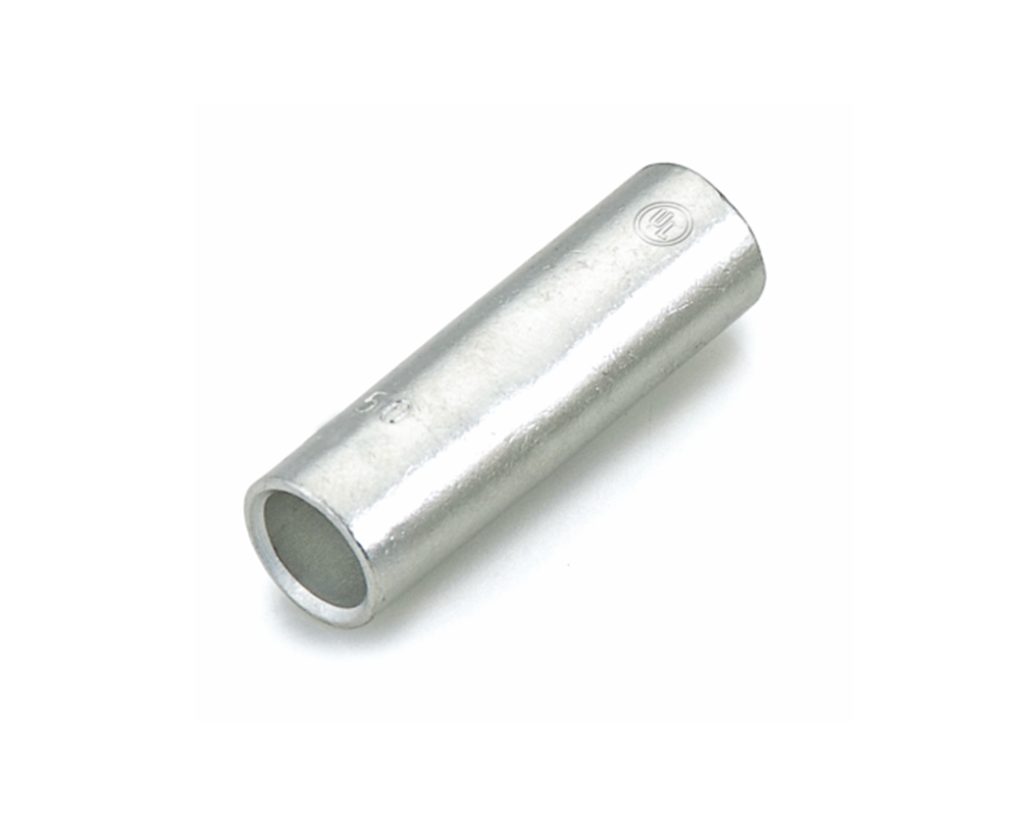

Copper compression Sleeves, Short Barrel

Copper compression Sleeves, Short Barrel

Category:

Description

SelectQty Wire Size Colour Dimensions in Inches Product Code
F OD ID
8 RED 1.125 0.281 0.172 VCT-8
6 BLUE 1.75 0.297 0.203 VCT-6
4 GRAY 1.875 0.344 0.25 VCT-4
3 WHITE 1.75 0.375 0.281 VCT-3
2 BROWN 1.875 0.422 0.313 VCT-2
1 GREEN 1.875 0.469 0.359 VCT-1
1/0 PINK 1.875 0.516 0.391 VCT-1/0
2/0 BLACK 2 0.563 0.428 VCT-2/0
3/0 ORANGE 2.125 0.609 0.484 VCT-3/0
4/0 PURPLE 2.125 0.688 0.547 VCT-4/0
300MCM WHITE 2.25 0.813 0.656 VCT-300
350MCM RED 2.375 0.875 0.688 VCT-350
400MCM BLUE 2.5 0.938 0.75 VCT-400
500MCM BROWN 2.875 1.063 0.828 VCT-500
600MCM GREEN 2.875 1.188 0.922 VCT-600

Standards:
UL 486A-4868
