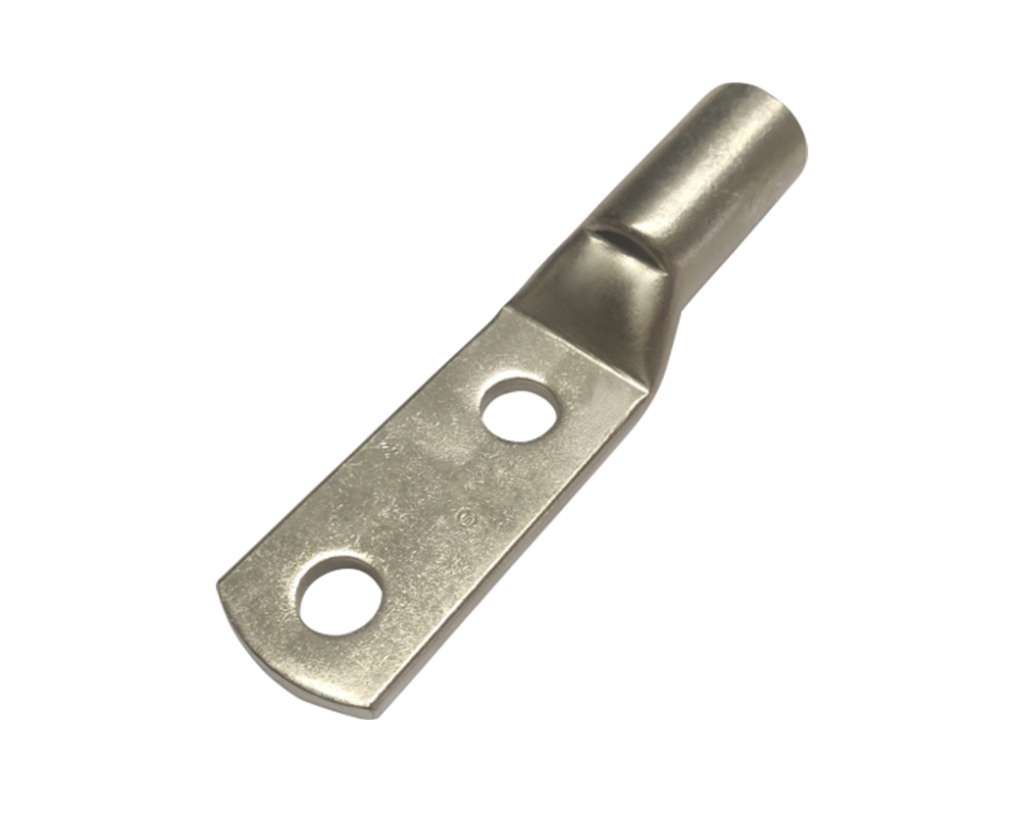

Copper HT lugs with 2 Holes, Long Rounded Palm

Copper HT lugs with 2 Holes, Long Rounded Palm

Category:

Best suited where two bolts are needed to avoid rotation or movement of lugs Longer length barrel permits extra crimps for heavy duty load Flat contacts surface and precise holes

Description

SelectQty Cable Size Stud Hole E Dimensions in MM Product Code
mm2 AWG A C D B Strip Length J
– – 17 13.5 17.4 25 30 120 VT 95 2ER-16
– – 21 13.5 17.4 28 30 127 VT 95 2ER-20
120 44/0 8.4 15 19.4 28 35 122 VT 120 2ER-8
MCM 10.5 15 19.4 28 35 122 VT 120 2ER-10
13 15 19.4 28 35 122 VT 120 2ER-12
14.5 15 19.4 28 35 125 VT 120 2ER-14
17 15 19.4 28 35 128 VT 120 2ER-16
21 15 19.4 28 35 133 VT 120 2ER-20
150 250 8.4 16.5 21.2 30 40 126 VT 150 2ER-8
MCM 10.5 16.5 21.2 30 40 126 VT 150 2ER-10
13 16.5 21.2 30 40 126 VT 150 2ER-12
14.7 16.5 21.2 30 40 132 VT 150 2ER-14
17 16.5 21.2 30 40 134 VT 150 2ER-16
21 16.5 21.2 30 40 139 VT 150 2ER-20
185 350 10.5 18.5 23.5 34 42 132 VT 185 2ER-10
MCM 13 18.5 23.5 34 42 132 VT 185 2ER-12
14.7 18.5 23.5 34 42 135 VT 185 2ER-14
17 18.5 23.5 34 42 137 VT 185 2ER-16
21 18.5 23.5 34 42 142 VT 185 2ER-20
240 500 10.5 21 26.5 38 50 143 VT 240 2ER-10
MCM 13 21 26.5 38 50 143 VT 240 2ER-12
14.7 21 26.5 38 50 145 VT 240 2ER-14
17 21 26.5 38 50 147 VT 240 2ER-16
21 21 26.5 38 50 152 VT 240 2ER-20
BL 21 26.5 38 50 143 VT 240 2ER-BL
300 600 10.5 23.5 30 43 55 144 VT 300 2ER-10
13 23.5 30 43 55 144 VT 300 2ER-12
MCM 14.7 23.5 30 43 55 151 VT 300 2ER-14
17 23.5 30 43 55 153 VT 300 2ER-16
21 23.5 30 43 55 158 VT 300 2ER-20
BL 23.5 30 43 55 144 VT 300 2ER-BL
400 750 13 28.5 36.5 52.5 60 149 VT 400 2ER-12
MCM 14.7 28.5 36.5 52.5 60 158 VT 400 2ER-14
17 28.5 36.5 52.5 60 160 VT 400 2ER-16
21 28.5 36.5 52.5 60 165 VT 400 2ER-20
BL 28.5 36.5 52.5 60 149 VT 400 2ER-BL
500 1000 13 30 39 56 65 160 VT 500 2ER-12
MCM 14.7 30 39 56 65 163 VT 500 2ER-14
17 30 39 56 65 165 VT 500 2ER-16
21 30 39 56 65 170 VT 500 2ER-20
BL 30 39 56 65 160 VT 500 2ER-BL

Standards:
UL 486A-4868
