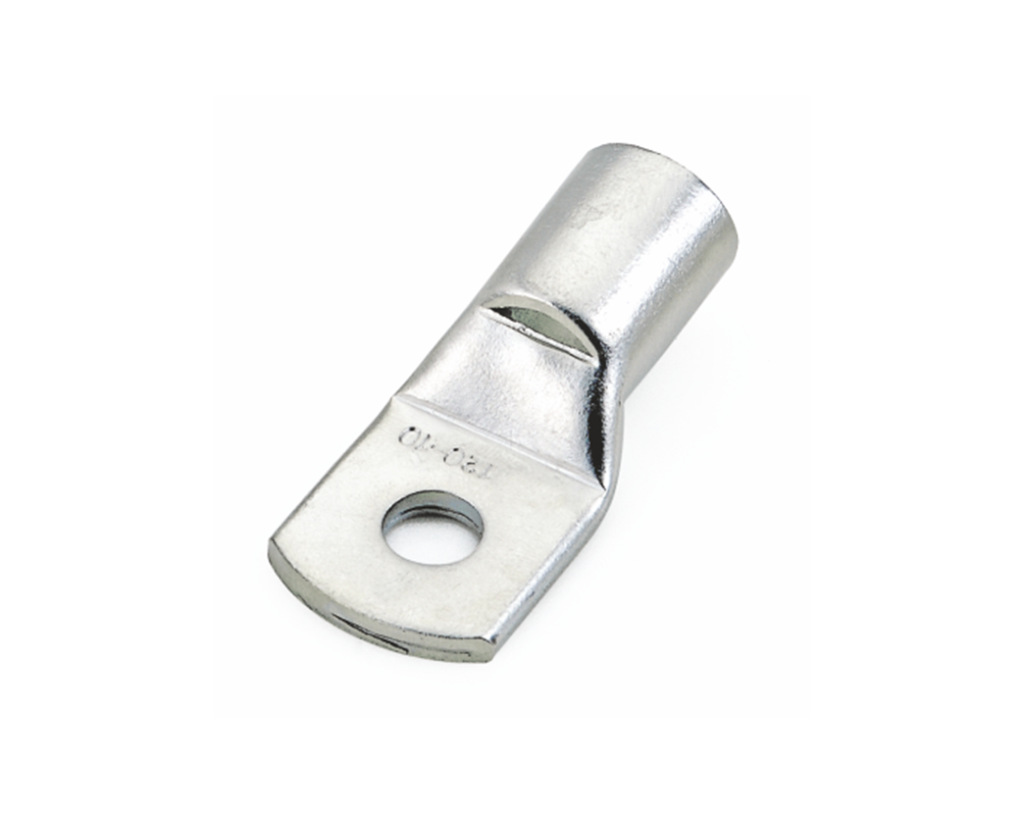

Crimping Type Copper Tubular Cable Terminal Ends

Crimping Type Copper Tubular Cable Terminal Ends

Category:

Used for allow accurate position dies during the crimping operation Tin plating on the terminals avoids oxidation and High conductivity seamless copper.

Description

SelectQty Wire Size Colour Code Dimensions in Inches Product Code
A C D B J
50 14.5 9.5 12.4 22 18 54 VT 50 – 14
17 9.5 12.4 22 18 54 VT 50 – 16
21 9.5 12.4 26 18 62 VT 50 – 20
70 8.4 11.3 14.6 21 18.5 47 VT 70 – 8
10.5 11.3 14.6 21 18.5 47 VT 70 – 1070
13 11.3 14.6 21 18.5 47 VT 70 – 12
14.5 11.3 14.6 22 18.5 55 VT 70 – 14
17 11.3 14.6 26 18.5 56 VT 70 – 16
21 11.3 14.6 28 18.5 63 VT 70 – 20
95 8.4 13.5 17.4 25 21 53 VT 95 – 8
10.5 13.5 17.4 25 21 53 VT 95 – 10
13 13.5 17.4 25 21 53 VT 95 – 12
14.5 13.5 17.4 25 22 58 VT 95 – 14
17 13.5 17.4 25 22 59 VT 95 – 16
21 13.5 17.4 28 22 63 VT 95 – 20
120 8.4 15 19.4 28 23 60 VT 120 – 8
10.5 15 19.4 28 23 60 VT 120 – 10
13 15 19.4 28 23 60 VT 120 – 12
14.5 15 19.4 28 23 60 VT 120 – 14
17 15 19.4 28 23 65 VT 120 – 16
21 15 19.4 28 23 65 VT 120 – 20
150 8.4 16.5 21.2 30 27 70 VT 150 – 8
10.5 16.5 21.2 30 27 70 VT 150 – 10
13 16.5 21.2 30 27 70 VT 150 – 12
14.7 16.5 21.2 30 27 70 VT 150 – 14
17 16.5 21.2 30 27 70 VT 150 – 16
21 16.5 21.2 30 27 70 VT 150 – 20
185 10.5 18.5 23.5 34 32 80 VT 185 – 10
13 18.5 23.5 34 32 80 VT 185 – 12
14.7 18.5 23.5 34 32 80 VT 185 – 14
17 18.5 23.5 34 32 80 VT 185 – 16
21 18.5 23.5 34 32 80 VT 185 – 20
240 10.5 21 26.5 38 39 94 VT 240 – 10
13 21 26.5 38 39 94 VT 240 – 12
14.7 21 26.5 38 39 94 VT 240 – 14
17 21 26.5 38 39 94 VT 240 – 16
21 21 26.5 38 39 94 VT 240 – 20
BL 21 26.5 38 39 94 VT 240 – BL
300 10.5 23.5 30 43 42 102 VT 300 – 10
13 23.5 30 43 42 102 VT 300 – 12
14.7 23.5 30 43 42 102 VT 300 – 14
17 23.5 30 43 42 102 VT 300 – 16
21 23.5 30 43 42 102 VT 300 – 20
BL 23.5 30 43 42 102 VT 300 – BL
400 13 28.5 36.5 52.5 45 112 VT 400 – 12
14.7 28.5 36.5 52.5 45 112 VT 400 – 14

Standards:
UL 486A-4868
