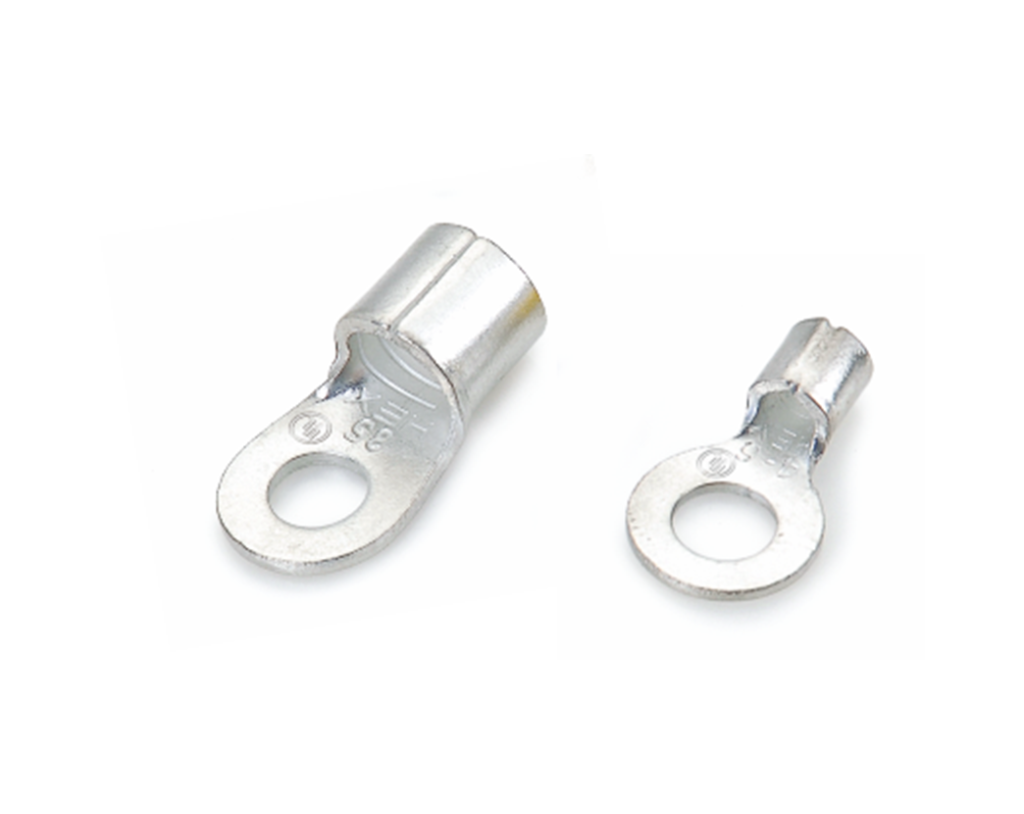

Tinned Copper Ring Type Cable Terminal Ends

Name: Tinned Copper Ring Type Cable Terminal Ends
SKU: 242
Availability: InStock

Category: Cable Terminal

Use to Tool Crimp, Wire Termination, Wire Extension and In Compact spaces

Description

Standards:
UL 486A-4868

Select	Qty	Cable Size		Dimensions in MM									Product Code
Select	Qty	mm2	AWG	A	C	D	F	B	K	H	L1	J	Product Code
		1.5	3.2	1.6	3.2	6.8	0.8	5	1	3.6	9.6	13	VR 7153
			3.7	1.6	3.2	6.8	0.8	5	1	3.6	9.6	13	VR 7048
			4.2	1.6	3.2	6.8	0.8	5	1	3.6	9.6	13	VR 7049
			2.2	1.6	3.2	6	0.8	5	2	4	11	14	VR 7103
			2.6	1.6	3.2	6	0.8	5	2	4	11	14	VR 7000
			3.2	1.6	3.2	6	0.8	5	2	4	11	14	VR 7001
			3.7	1.6	3.2	6	0.8	5	2	4	11	14	VR 7002
			4.2	1.6	3.2	6	0.8	5	2	4	11	14	VR 7003
			4.2	1.6	3.2	7	0.8	5	1	5	11	14.5	VR 7154
		2.5	3.2	2.3	3.9	6.5	0.8	5	1	3.5	9.5	12.7	VR 7107
			3.7	2.3	3.9	6.5	0.8	5	1	3.5	9.5	12.7	VR 7008
		04-Jun	4.2	3.5	5.5	8	1	6	2	5	13	17	VR 7155
			5.2	3.5	5.5	8	1	6	2	5	13	17	VR 7050
			4.2	3.5	5.5	10	1	6	3	5	14	19	VR 7112
			5.2	3.5	5.5	10	1	6	3	5	14	19	VR 7016
			5.2	3.5	5.5	12	1	6	2	6	14	20	VR 7113
			6.4	3.5	5.5	12	1	6	2	6	14	20	VR 7017
			8.2	3.5	5.5	12	1	6	2	6	14	20	VR 7018
			5.2	3.5	5.5	12	1	6	3	7	16	22	VR 7114
			6.4	3.5	5.5	12	1	6	3	7	16	22	VR 7019
			5.2	3.5	5.5	8	1	6	3	9.8	18.8	22.8	VR 7157
			6.4	3.5	5.5	14	1	6	2	10.5	18.5	25.5	VR 7115
			8.2	3.5	5.5	14	1	6	2	10.5	18.5	25.5	VR 7020
			9.7	3.5	5.5	14	1	6	2	10.5	18.5	25.5	VR 7021
			8.2	3.5	5.5	16	1	6	3	13	22	30	VR 7116
